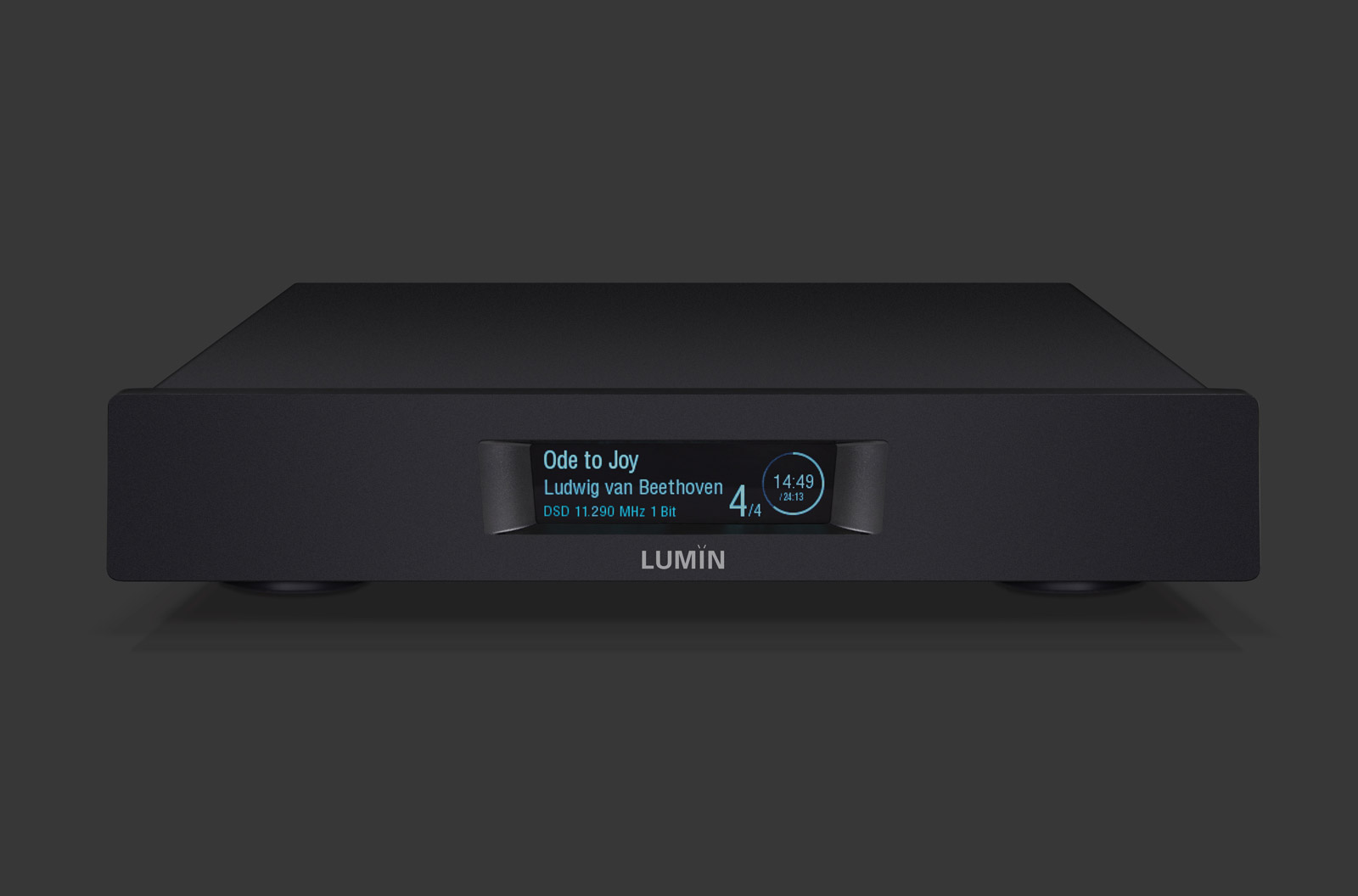

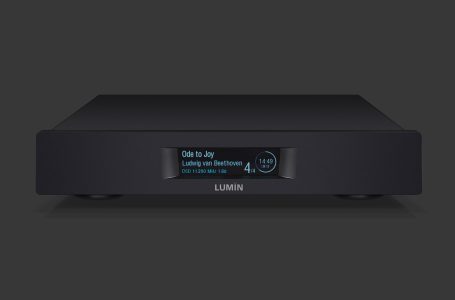

Lumin D3 Streamer/ Dac

Technical specifications (according to the manufacturer)

Streaming protocol: UPnP AV
Supported file types:
– DSD: DSF, DIFF, DoP
– PCM: FLAC, Apple Lossless (ALAC), WAV, AIFF
– Compressed: MP3, AAC (in M4A container)
Sampling frequencies, word lenght:
– PCM, 44.1 – 384 kHz, 16 – 24 bits, stereo – DSD, 2.8 (DSD64) – 11.2896 MHz (DSD256), 1 bit, stereo

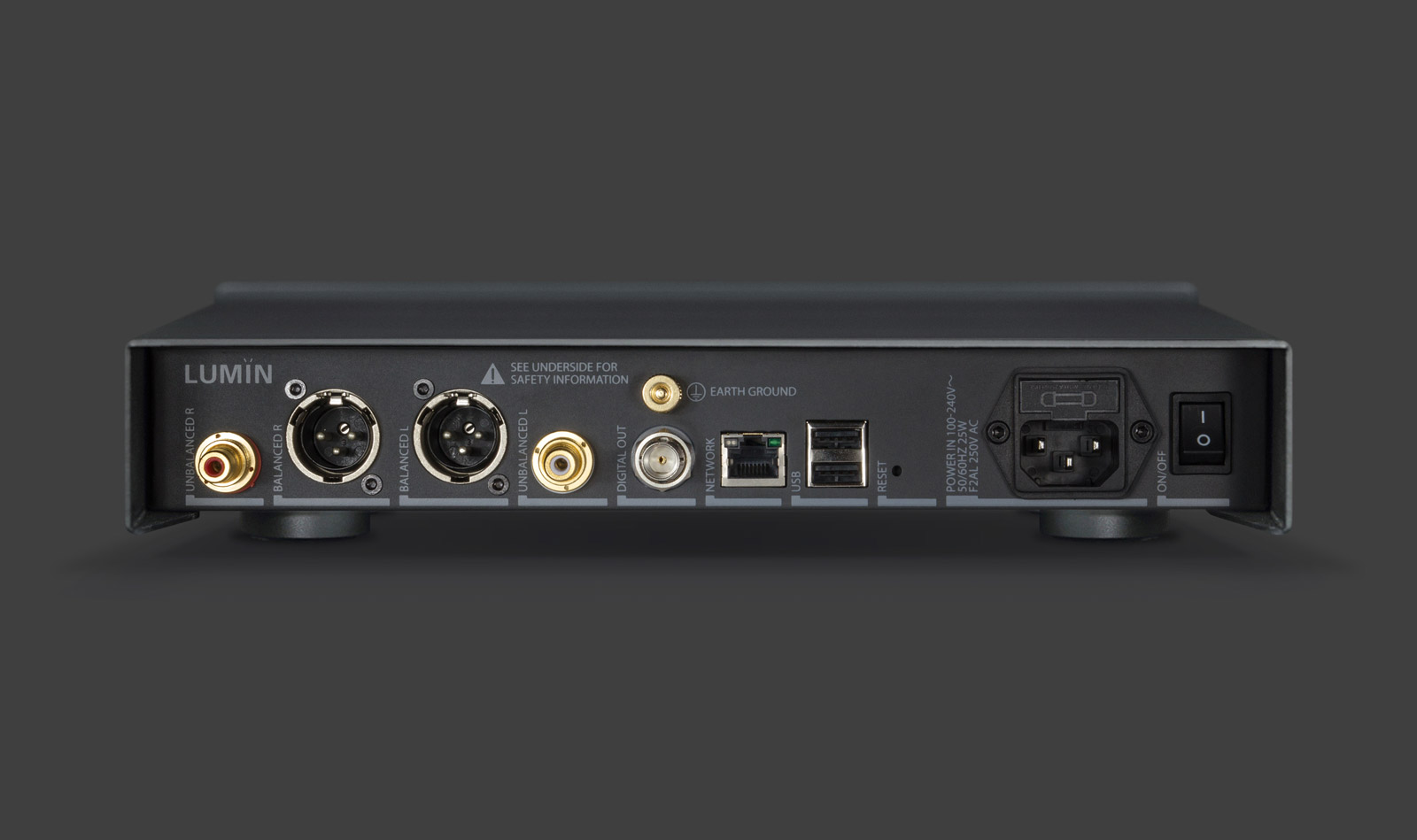

Digital outputs:
– BNC S/PDIF
” PCM 44.1 – 192 kHz, 16 – 24 bits
” DSD (DoP, DSD over PCM) 2.8 MHz, 1 bit

Inputs: Ethernet Network 1000Base-T, USB (storage)
Output voltage: 6 V XLR (hot = 2) ⸜ 3 V RCA.
Dimensions (W x H x D): x 300 x 60 x 244 mm
Weight: 2.5 kg
