Specifications

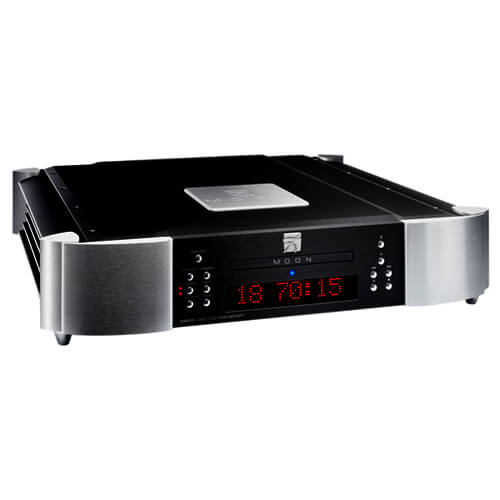

Description: CD player and D/A converter.

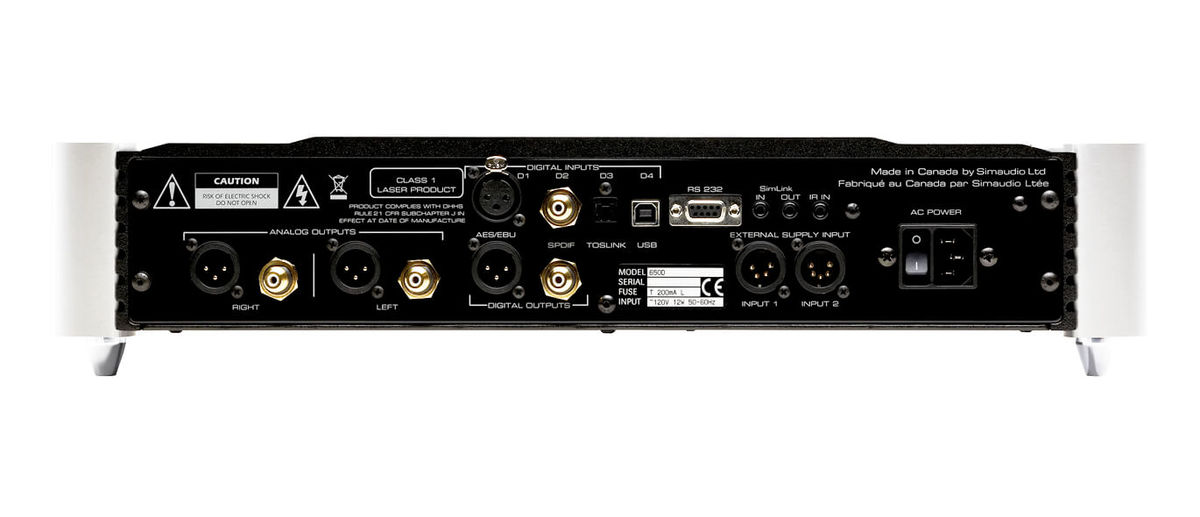

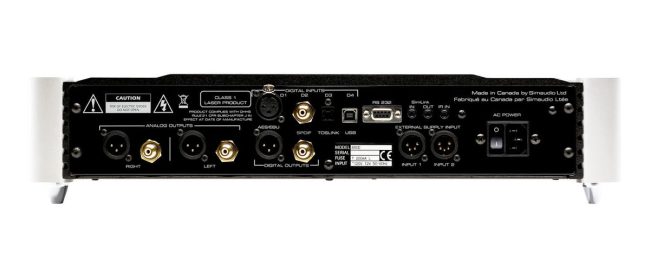

Digital inputs: AES/EBU (XLR), S/PDIF (RCA), S/PDIF (TosLink), USB Type B.
Digital outputs: S/PDIF, AES/EBU.
Analog outputs: 1 pair XLR balanced, 1 pair RCA single-ended.
Sample rates supported: 44.1, 48, 88.2, 96, 176.2, 192kHz (AES/EBU and S/PDIF); 32, 44.1, 48kHz. USB.
USB bit depth: 16.
Frequency responses: audible, 20Hz–20kHz, +0/–0.1dB (CD); full range, 2Hz–100kHz, +0/–3dB (with external digital source).
Total harmonic distortion at 1kHz, 0dBFS (A-weighted): 0.001%.
Intermodulation distortion: 0.001%. Dynamic range: >120dB. Signal/noise ratio: >120dB at full output.
Slew rate: 50V/µs. Channel separation: >116dB. Low-level linearity: ±0.25dB at –90dBFS.
Intrinsic jitter: 1 picosecond
RMS. Maximum analog output level at 0dBFS, XLR/RCA: 2.0V.
Analog output impedance, RCA: 100 ohms.
Dimensions: 18.75? (480mm) W by 4.0? H (100mm) by 16.81? (430mm) D. Shipping weight: 35 lbs (16kg).
