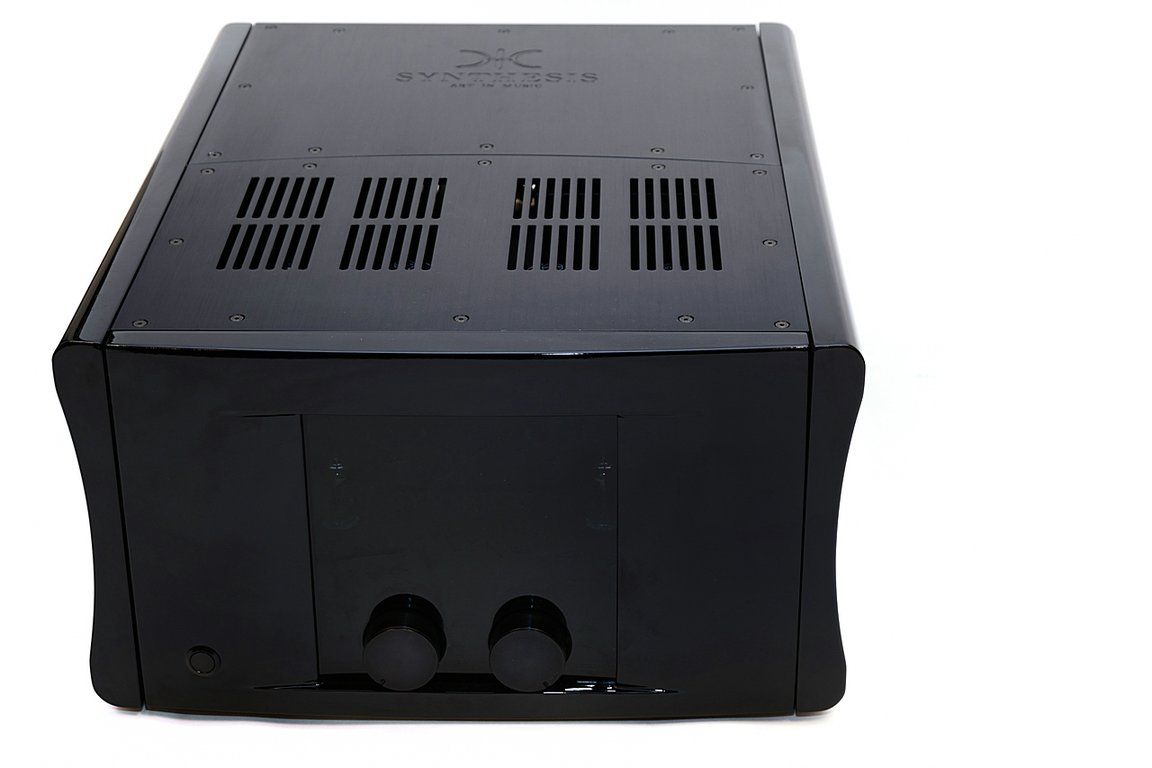

Synthesis Metropolis NYC200i Integrated Amplifier

• Aluminum Knobs
  Two 45mm CNC machined control knobs with integral soft light and laser-etched indication segments.
• DC Powered tube heater
  All tubes, except KT120, have DC stabilized heater circuits to reduce hum noise to a near in-audible minimum.
• Output transformer
  The Output transformer uses a double C-core Hi-Grade Iron-Silicon for superb frequency reproduction and bandwidth. With this newly designed custom output transformer unique to the NYC200i we are able to achieve highly delicate and precise sound reproduction faithful to the original recording.
• Mechanical chassis construction

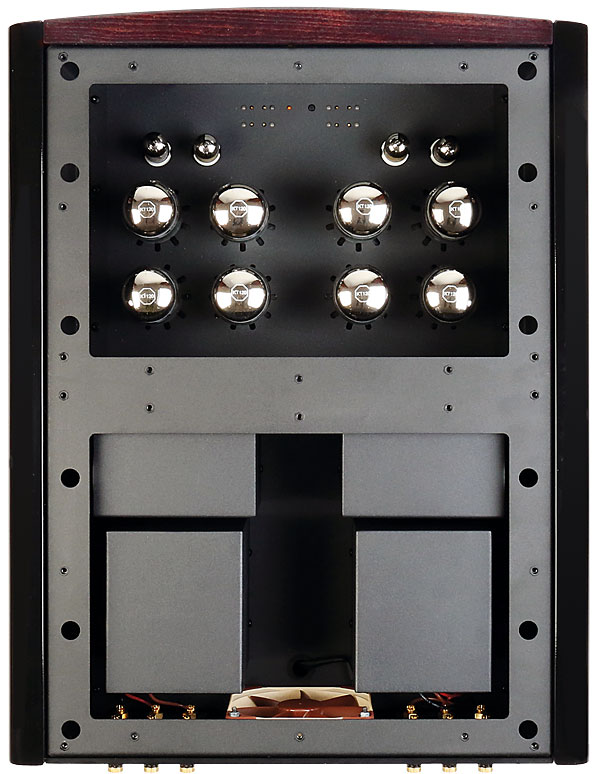

  The power supply and output transformers are held by an extremely rigid “H” structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
• Remote control
  A superb wooden handmade case with soft button design, perfectly matching the aesthetics for the “Metropolis” series.
• Feet
  Four CNC machined aluminum feet with an insert of natural rubber. The depth and form of these rubber feet is calculated to minimize the vibration of the amplifier in isolation from its surroundings.
• Fan
  A 120mm fan provides a speed between 500 to 700 rpm which is controlled via the supplied adapter. This ULN (Ultra-Low-Noise) unit is tailor-made for the serious enthusiast who demands super-slow running speeds and the utmost silence of operation.
• Bias control
  The factory set fine bias control is microprocessor controlled to maintain the optimum settings. If required this can be adjusted without the use of an external voltmeter by use of an internally fitted display device.
• Dual mono Circuitry
  A completely dual mono design minimizes the crosstalk across channels. Power transformers use hi-grade iron silicon M0 and separate supplies with hi-grade selected capacitors to produce extremely low ripple levels. Independent to the mains transformer, each channel has a separate power supply guaranteeing a large reservoir of energy to meet the demands of the amplifier circuit and to maintain excellent interference immunity between channels.
• Binding posts
  Gold plated professional binding posts for a continued oxidization free connection further improve sound refinement.
• Socket
  Gold plated ceramic sockets for a continued oxidization free connection further improve sound refinement.
• Components
  Components for the NYC 200i have been selected with great care throughout. Only the best available components are considered and all must undergo an exhaustive analysis of their sonic influence prior to final selection.
• Selected tubes
  All tubes used are selected after 2 stages warm-up. A fully computer monitored machine controls the process and at the end of this, selects the perfect tubes which are matched for a perfect balance.

SPECIFICATIONS

Dual Mono Integrated Amplifier
Power stage (1ch): 4 x KT120
Driver (1ch): 12BH7
Input stage (1ch): 12AX7-ECC83
Configuration: Parallel Push-Pull ult
Power output: 230W RMS into 4/8 ohm
each channel AB1 class
Frequency resp.: 20Hz to 20KHz +-0.5dB
Input Impedance: 50Kohm
Input sensitivity: 200mV / 230W
Signal/Noise ratio: >90dB, A-weighted
Inputs: 5 Line level inputs;
DAC, Tuner, DVD,
CDP, XLR.
Pre output: Volume controlled
Power cons.: 500W Max
Dim.: (w,d,h) 450x630x260mm
Weight: 50.0 Kg
