Description: fibre composite technology, loudspeaker.
Type: free space floor standing.
Range: full frequency; 30 hz to 20 khz. +/- 2.5 db 40 hz to 20khz.
Imp loading: 6 ? nominal, 4.5 ? minimum. within 1-3 ohms tolerance 50 hz to 20khz.
Sensitivity: 88db / watt, 2.83 v input.
Low freq loading: bessel alignment of fourth order reflex, double chamber differential tuning
Crossover: minimum phase, primarily low order 6db / octave , short signal path. air core inductors, selected polypropylene capacitors.
Bass driver: isotactic polypropylene ferrite drive unit.
Bass-mid driver: isotactic polypropylene ferrite drive unit.
Treble driver: scan 9300.
Internal wiring: multi strand silver plated stranded copper, teflon jacket.

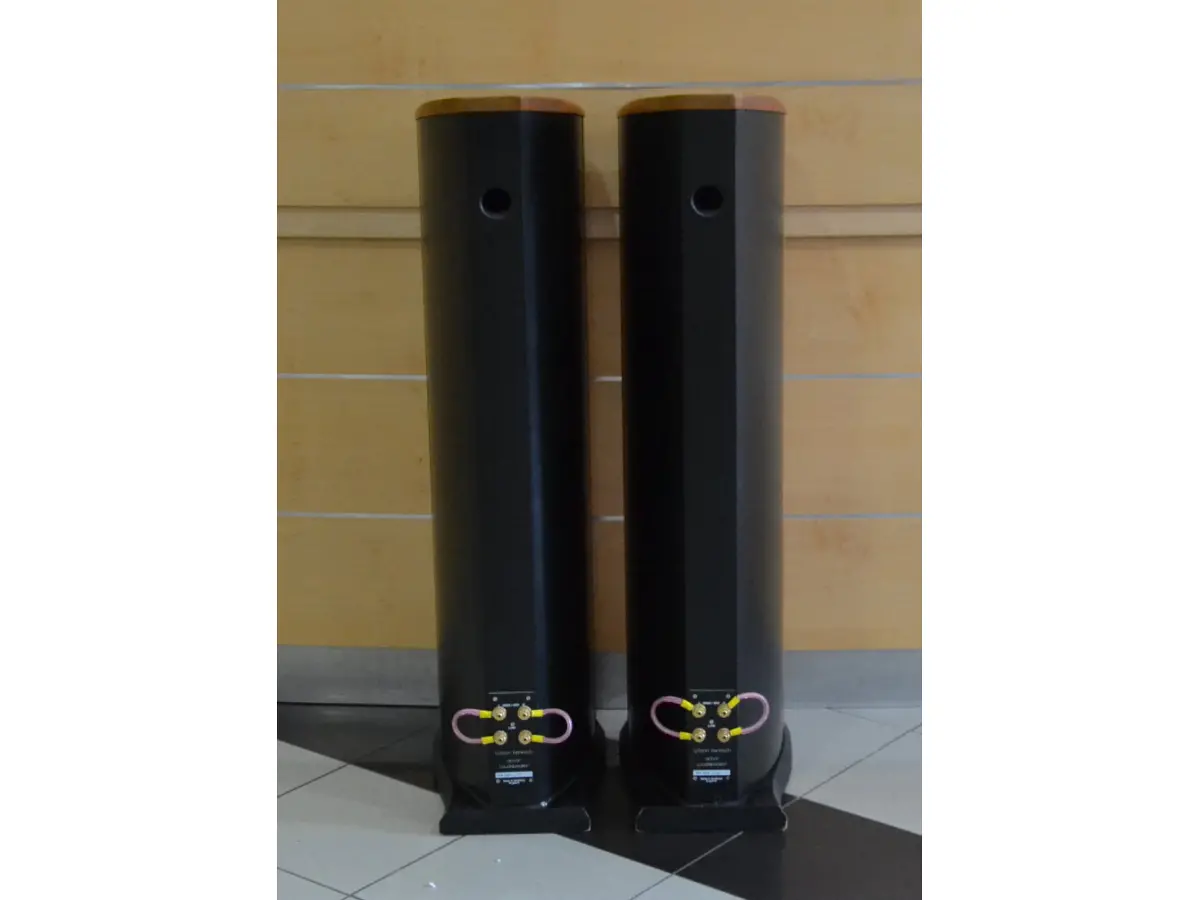

Input: bi wireable.
Power handling: 200 w peak unclipped programme.
Maximum level: 112 db at 1 metre.
Internal volume: approx 44 litres.
Size:
height: 1115 mm.
width: 230 mm.
depth: 370 mm
Weight: approx 26 kg
